Lighting Fixture Identification



Activity Overview:

You will identify and label the essential components and accessories associated with lighting fixtures.



Directions:

1.    Using the provided word bank below, label the various images of lighting fixtures below. Answer choices will only be used once.



2.    Once complete, turn in according to your instructor's directions.



Ballast

Gobo

Barn door

Gel frame

Bulb

Light-emitting diodes (LED bulbs)

C-stand

Lens

Flag

Power cable

Fluorescent bulb

Yoke



Image 1:

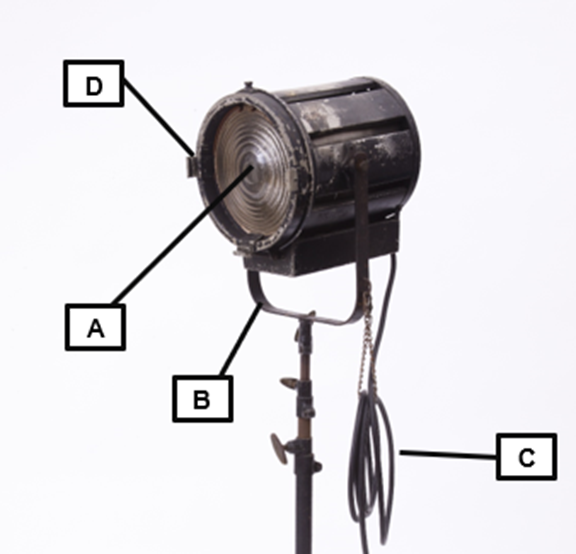

Image of a lighting fixture with spaces to label each component. Label A points to a rounded circular piece of glass on the front of the item. Label B points to a metal bar that connects the stand to the lamp housing. Label C points to a bundled cord used to power the light. Label D points to the rim of the main housing, where brackets allow the lamps color to be adjusted with a separate piece of equipment.

A: _____________



B: _____________



C: _____________



D: _____________





Image 2:

Small glass item with wire filament inside, tightly coiled, with two pins protruding from the bottom.



Answer: _____________





Image 3:

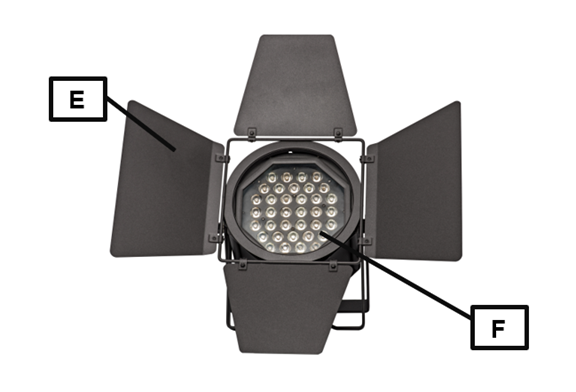

Image of a lighting fixture. Label E points to metal flap secured to the rim of the lighting fixture, and can be angled to direct light. Label F points to a series of small structures in the center, densely packed together which emit light.



E: _____________



F: _____________





Image 4:

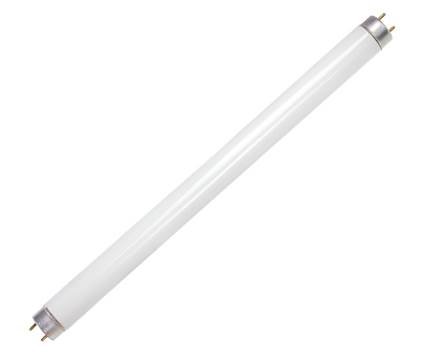

Long cylindrical tube with prongs on both ends, center is a smooth shiny glass.



Answer: _____________





Image 5:

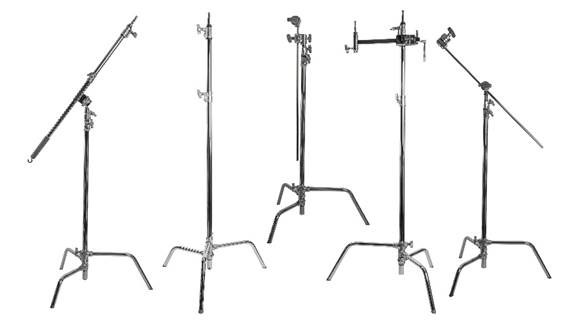

Collection of metal contraptions, each with three legs and an adjustable upper arm; is used to direct light at a certain height or angle.



Answer: _____________





Image 6:

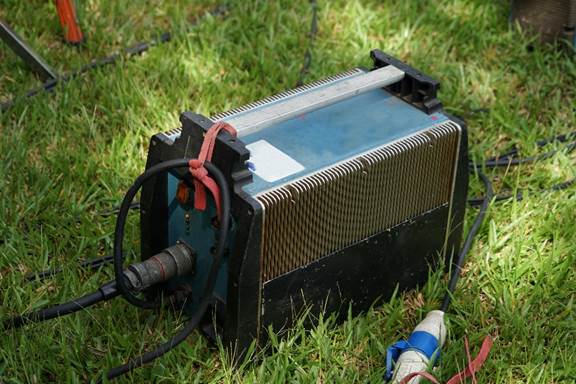

Large heavy rectangular box with handle on the top. Features a power switch, status lights, and has a thick cord plugged into it. Used for converting electrical power for lighting equipment.



Answer: _____________





Image 7:

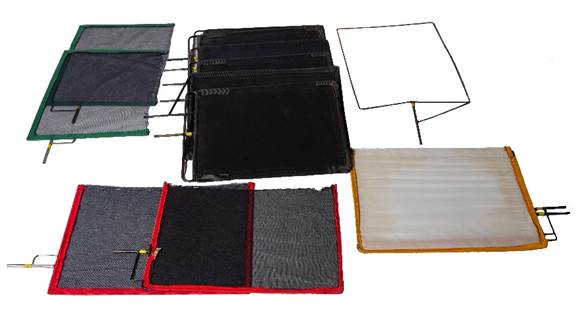

 Assortment of rectangular shapes with metal framing - used to block or filter light from a shot.



Answer: _____________





Image 8:

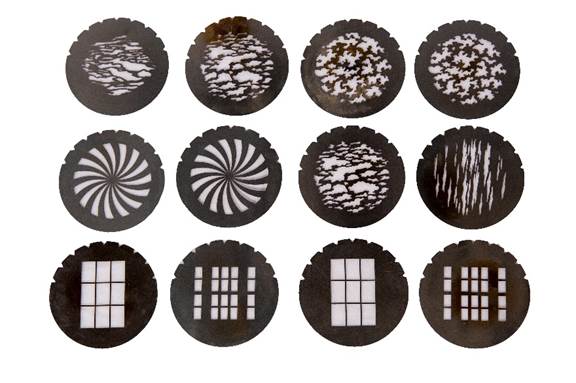

Assortment of discs with varying textures and patterns in the center. Used to cast shadows of the design.



Answer: _____________
